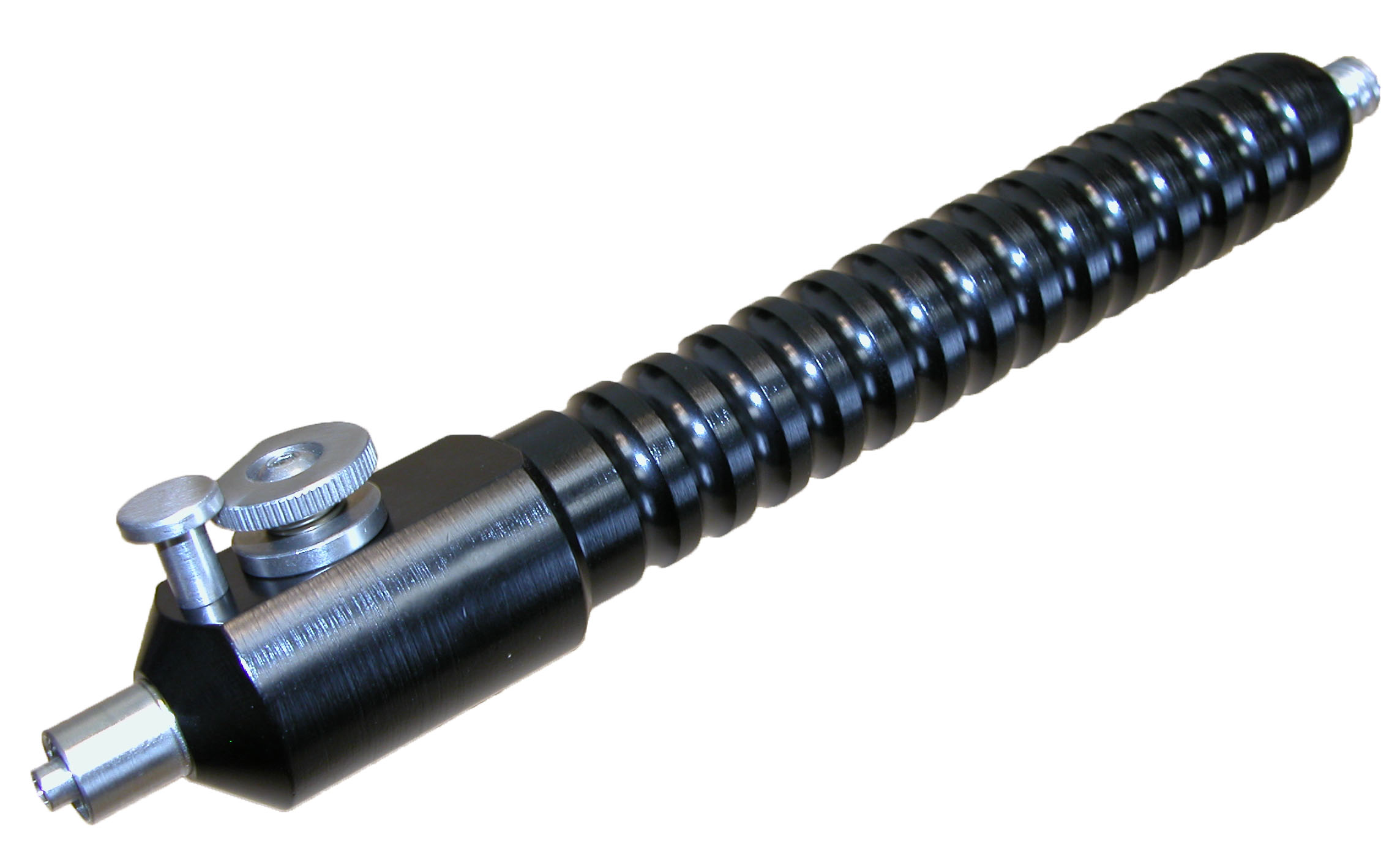

Model Number:

1040-INFU-C

Product Description:

A flow on/off control infusion handle for use with roller pump devices.

Handle diameter: 15/16"(control) 5/8"(handle)

Overall length: 5.5"

Weight: 3.5 oz.

Body: Aluminum with type 2 black anodized

Valve: Stainless Steel

Female Luer Lock: Stainless Steel

Male Luer Lock: Stainless Steel

Model Number:

1540-INFU-SCC

Product Description:

Infusion Handle with Stopcock Control

Handle diameter: 3/4"

Overall length: 7.75"

Weight: 4.5 oz.

Body: Aluminum with type 2 dark blue anodized

Valve: Brass with Electroless Nickel Plating

Female Luer Lock: Stainless Steel

Male Luer Lock: Stainless Steel

Model Number:

1030-INFU-NC

1030-INFU-NC-L(for 1" Dia.)

Product Description:

Standard Infusion handle, No Control

Handle diameter: 3/4"

Overall length: 5.5"

Weight: 3.5 oz.

Body: Aluminum with type 2 blue anodized

Female Luer Lock: Stainless Steel

Male Luer Lock: Stainless Steel

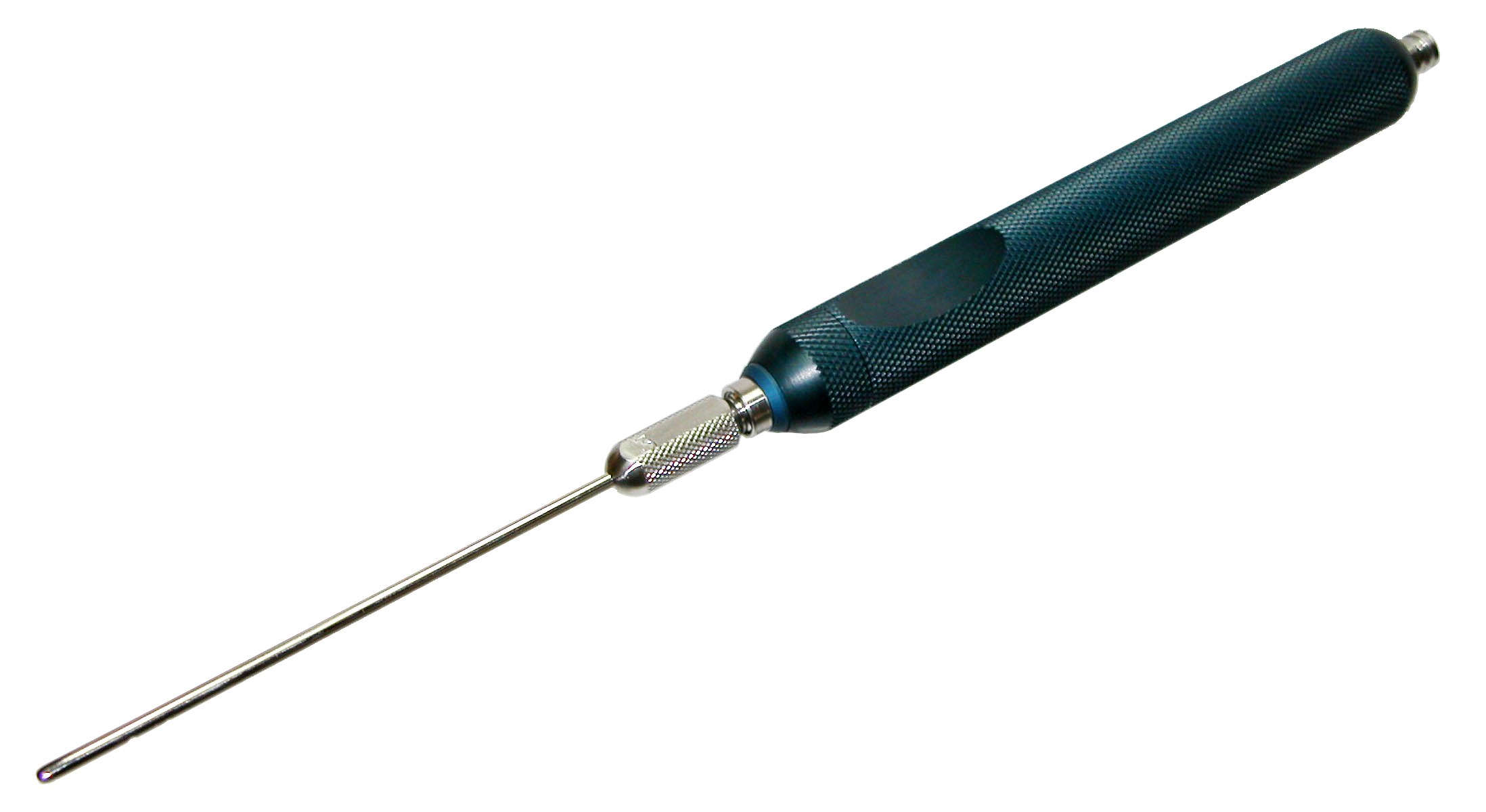

Model Number:

1530-LLAH-S(for small)

1530-LLAH-L(for large)

Product Description:

Luer Lock Adjustable Handle. Orientation between Luer Lock and Handle.

Handle diameter: 3/4"(for small) 1.0"( for large)

Overall length: 6.25"

Weight: 4 oz. for small, 6.3 oz. for large

Body: Aluminum with type 2 blue anodized

Female Luer Lock: Stainless Steel

Male Luer Lock: Stainless Steel

Model Number:

1030-INFU-NC-TC

1030-INFU-NC-TC-L(for 1" Dia.)

Product Description:

Infusion handle with tube connector for use with reusable infusion tubing.

Handle diameter: 3/4"

Overall length: 6.3"

Weight: 4 oz. for small, 6.4 oz. for large

Body: Aluminum with type 2 blue anodized

Female Luer Lock: Stainless Steel

Barb: Stainless Steel

Model Number:

1525-LLAAH

Product Description:

Luer Lock Adjustable Handle ideal for rotating the Luer Lock flat to the thumb rest

Handle diameter: 3/4"

Overall length: 7.2"

Weight: 3.7 oz.

Body: Aluminum with type 2 blue anodized

Male Luer Lock: Stainless Steel

Model Number:

1090-AH-L (for large)

1090-AH-S (for small)

Product Description:

Standard Aspiration Handle

Handle diameter: 3/4"(for small) 1.0"( for large)

Overall length: 6.8"

Weight: 6 oz. for large, 3.5 oz. for small

Body: Aluminum with type 2 blue anodized

Male Luer Lock: Stainless Steel

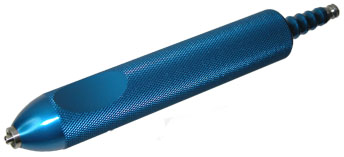

Model Number:

1100-INFU/DLL-L (for large)

1100-INFU/DLL-S (for small)

Product Description:

Standard Aspiration Handle with Double Luer Lock

Handle diameter: 3/4"(for small) 1.0"( for large)

Overall length: 7.1"

Weight: 6.3 oz. for Large, 3.4 oz. for small

Body: Aluminum with type 2 blue anodized

Male Luer Lock: Stainless Steel

Female Luer Lock: Stainless Steel
